METAL PARTITIONS
Metal partition walls

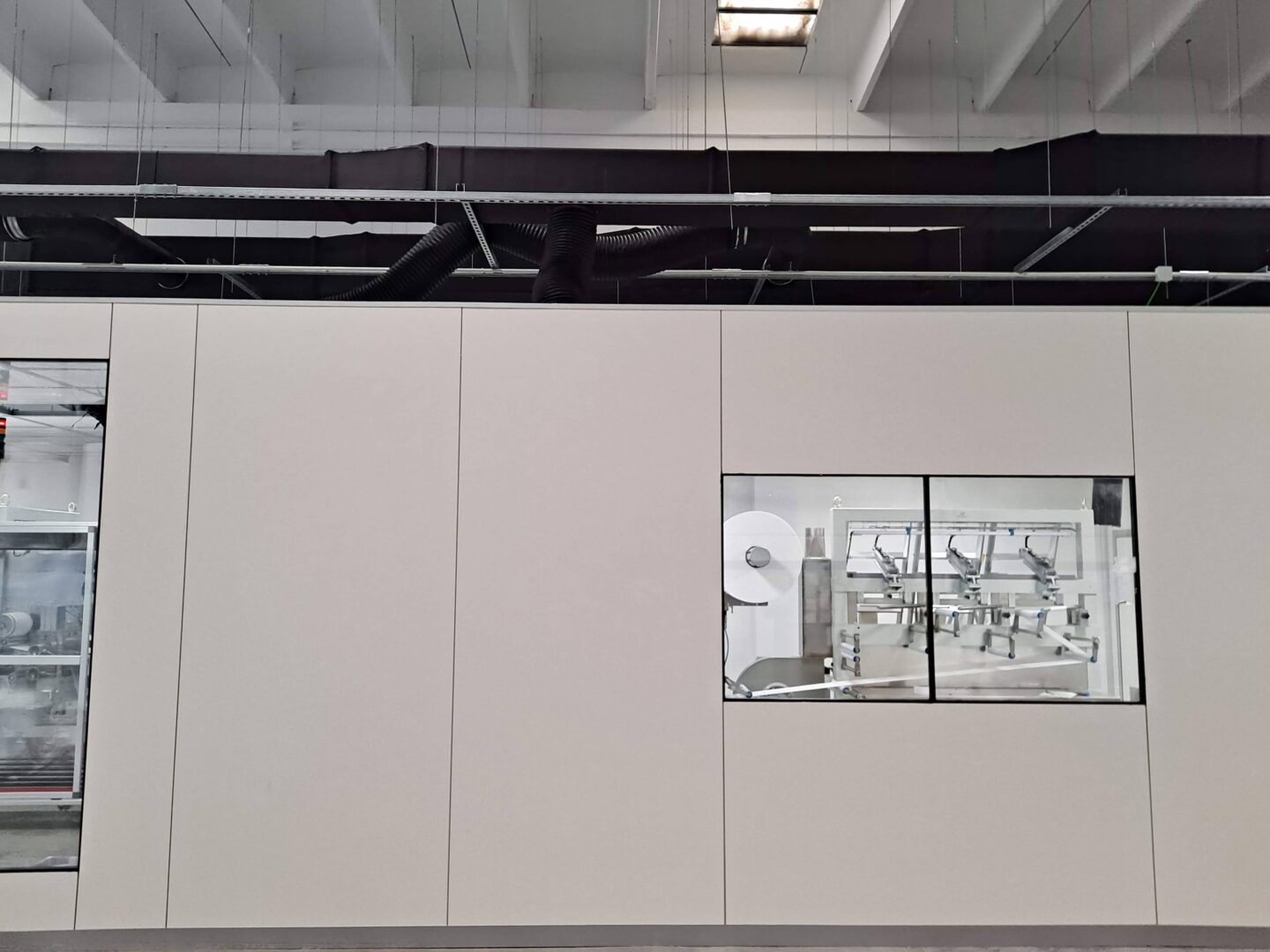

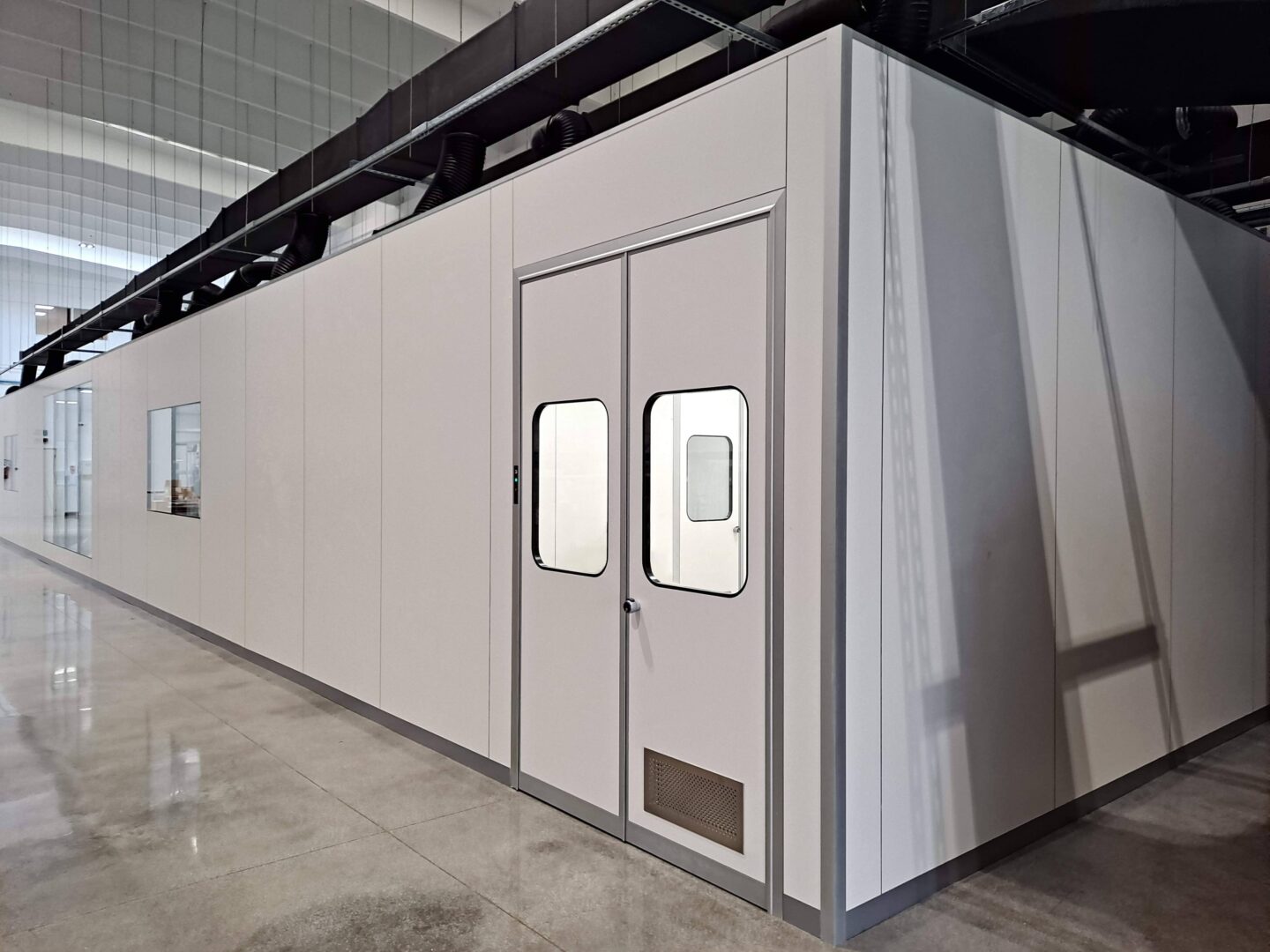

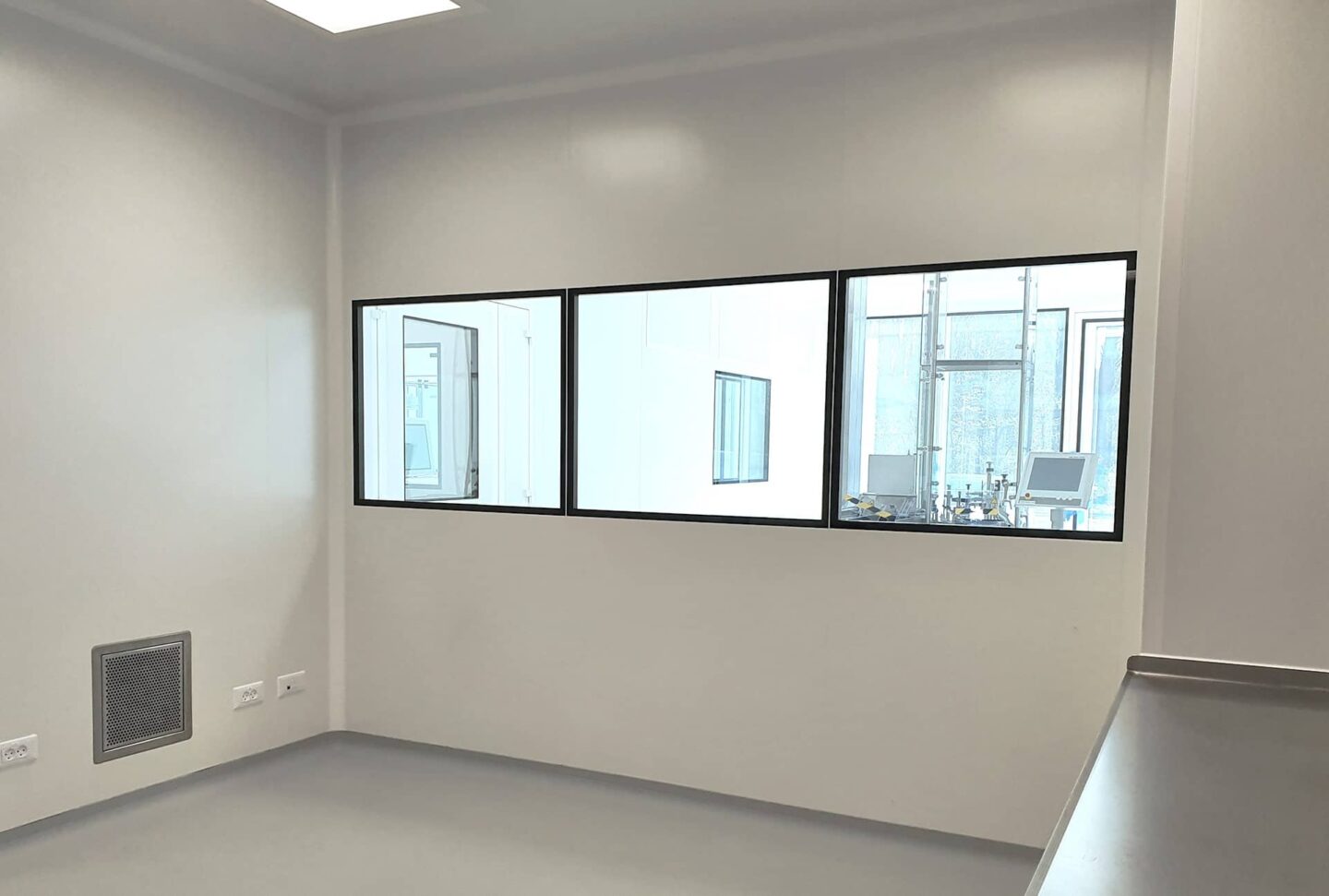

Our metal partition system is composed by free-standing panels made of pre-painted aluminum. The panels are connected to each other with a locking structure and sealed with silicone. Partition walls can be easily integrated with windows, doors, and all necessary workings and accessories.
On the outside, the 45mm thickness panel with internal tubular aluminum frame is clad on both sides with 1 mm thickness painted steel (Class A1-s1, d0). Internal insulation with fiber-oriented and high-density mineral wool (90kg/m3), Class A1-s1, d0. Also available with 125 microns pre-finished PVC finish for long lasting scratch-free use.
GMP Annex 1 is the EU standard for “The Manufacture of Sterile Medicinal Products”. The manufacture of sterile products is subject to special requirements in order to minimize risks of microbiological, particulate and pyrogen contamination.

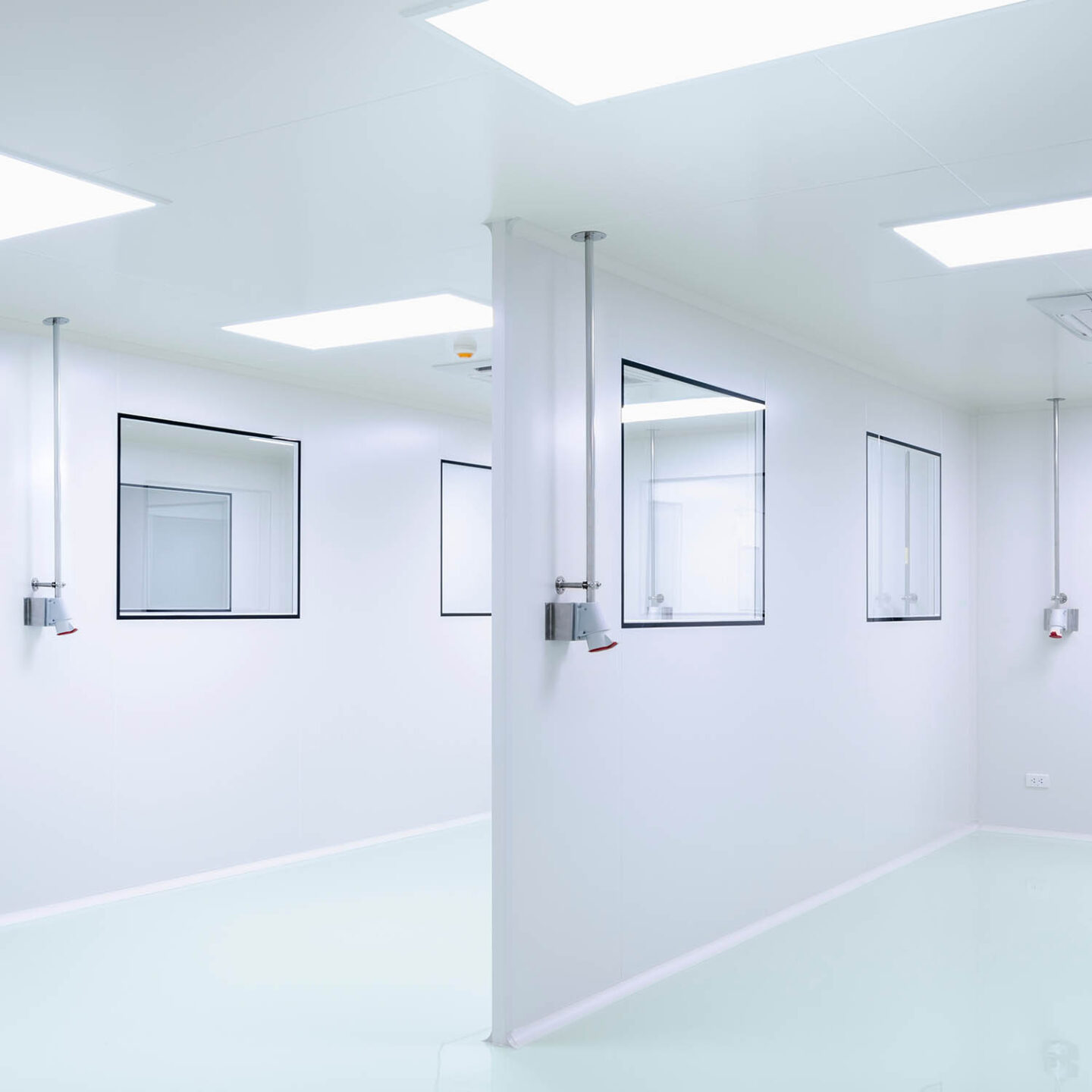

Partition walls and ceilings are built using sandwich panels consisting of a core material between two outer layers, typically composed of smooth and non-porous materials like stainless steel, aluminum or HPL. The core material often consists of substances with excellent insulation properties, such as polystyrene foam, rock wool or aluminum honeycomb.
Plastic coated aluminium sheet (1 mm)
Pre-painted aluminium sheet (1 mm)
High-density expanded sintered polystyrene (35kg/m3)
High-density fibre oriented rockwool panel (90kg/m3)
Aluminium honeycomb
Holes for grids and channels
Cable ducts and service panel
Holes for electrical boxes
Lead sheet for soundproofing
Omega profiles
Breakout panel for emergency exit
Coplanar glasses
