HPL PARTITIONS
High Pressure Laminate partition walls

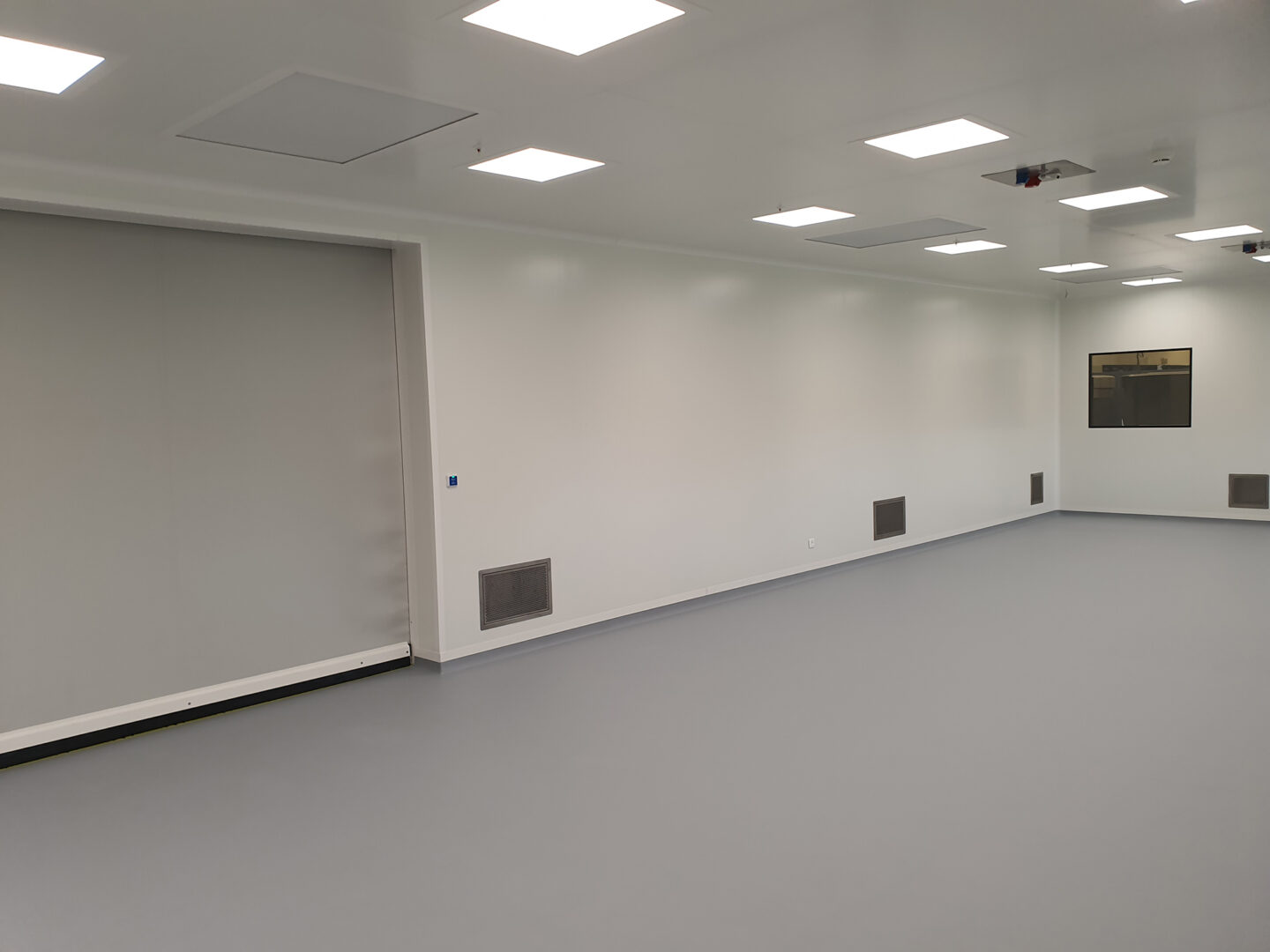

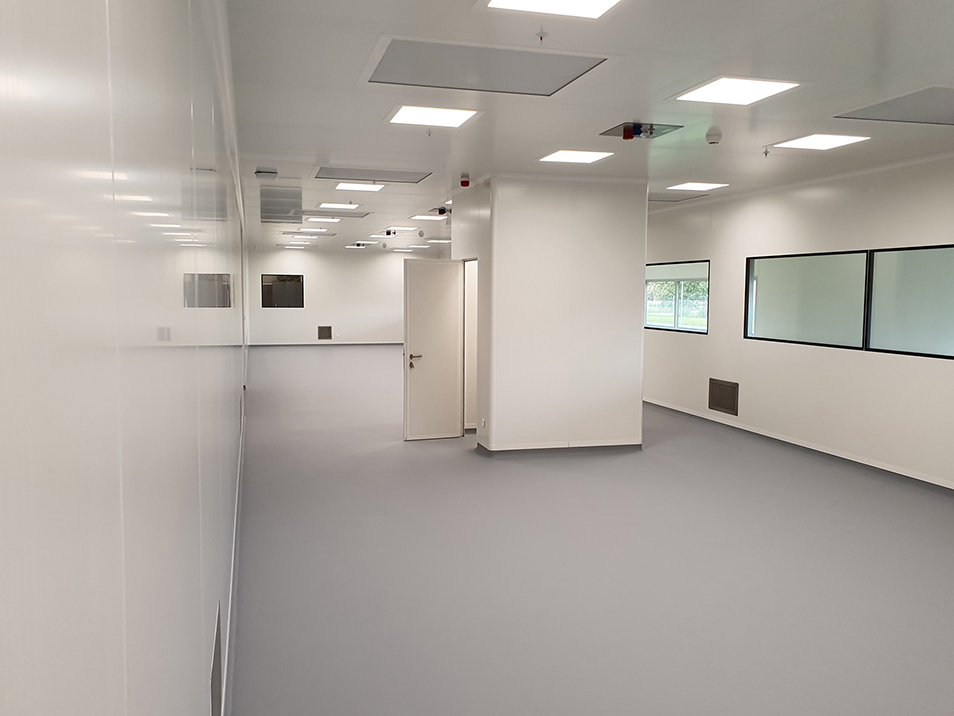

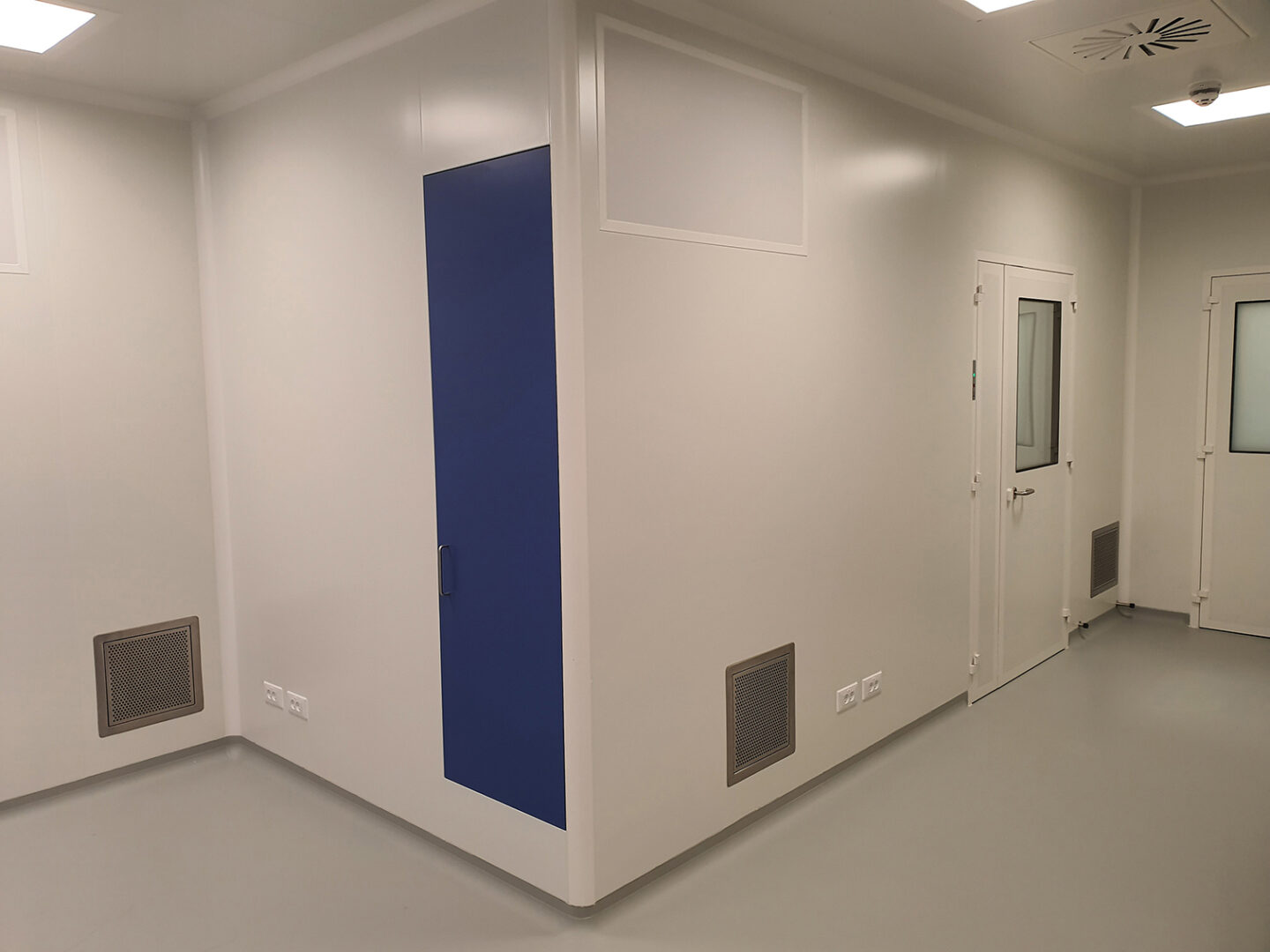

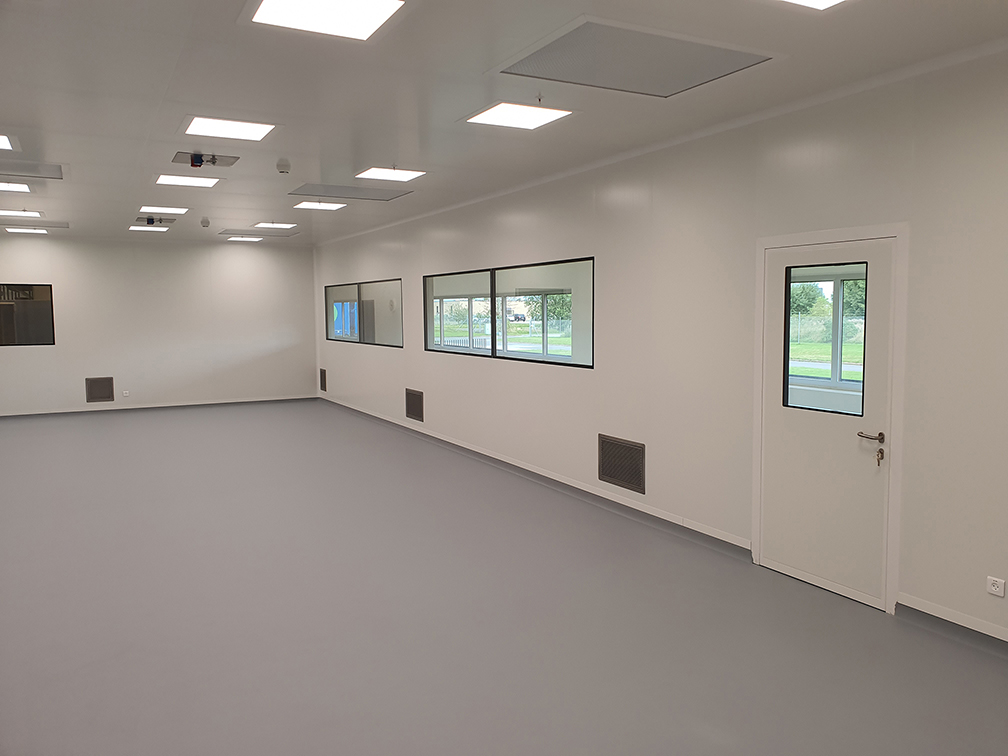

Our HPL partition system is composed by free-standing panels made of high quality HPL. The panels are connected to each other with a locking structure and sealed with silicone. Partition walls can be easily integrated with windows, doors and all necessary workings and accessories.
HPL surfaces are available with a thickness of 4 mm or 2,5 mm with B-s1, d0 fire behavior class according to EN 13501-1.
High Pressure Laminate (HPL) is a composite material consisting of printed decoration paper fused to multiple sheets of Kraft paper saturated with a synthetic thermosetting resin.
Partition walls and ceilings are built using sandwich panels consisting of a core material between two outer layers, typically composed of smooth and non-porous materials like stainless steel, aluminum or HPL. The core material often consists of substances with excellent insulation properties, such as polystyrene foam, rock wool or aluminum honeycomb.
HPL plastic laminate (4 mm or 2.5 mm)
High-density expanded sintered polystyrene (35kg/m3)
High-density fibre oriented rockwool panel (90kg/m3)
Aluminium honeycomb
Holes for grids and channels
Cable ducts and service panel
Holes for electrical boxes
Lead sheet for soundproofing
Omega profiles
Breakout panel for emergency exit
Coplanar glasses
